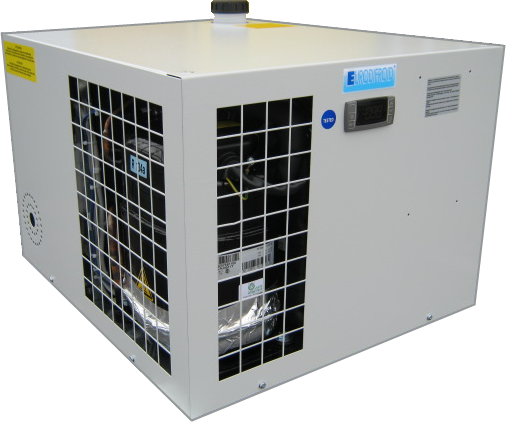

WATER CHILLER KRNA 19-300 of EURODIFROID

Product

46   products -   of

Description of the Product

DESCRIPTION:
KR(N)A water chillers, in conformity to CE standard, can be used to cool process and machines. Hydraulical and electrical connections, as well as maintenance have been simplified to the maximum, for easier installation and use. These chillers are standard equipped with insulated tank with cover and circulating pump. In order to follow user's need, many alternatives and options are available.
The range of application's temperature goes from +10°C to +25°C (standard), with possibility to extend from -30°C to +45°C, according to request.
Ambient conditions lie between +15°C and +45°C. For specific applications, limits can be extended (for example -20°C to +55°C).

STANDARD EQUIPMENT:
Hermetic compressor
Regulation via electronic thermostat
Air condensing unit
Refrigerant R134a (KRA 19 to 70)
Refrigerant R407C (KR(N)A 90 to 300)
Immerged copper evaporator (KRA 19 to 70)
Plate heat exchanger protected by a differential pressure switch (KRA 90) or by a flow switch (KRNA 120 to 300)
Peripheric circulation pump (KRA 19 to 45)
Centrifugal circulation pump (KR(N)A 70 to 300)
Insulated stainless steel tank
Drain valve
Water level indicator
Water manometer
Textured RAL 7035 paint
Factory tested, ready for use

Price of the Product

Price not indicated

Technical Details

Factory tested, ready for use
